PRODUCTS
|
DIGI DC Scales have earned
a reputation for delivering quality and innovation to industrial
businesses through the United States. This unique line of counting
equipment is designed to provide solutions for a wide range of applications,
from basic portable scales for straight weighing to high-powered
counting systems.
Standard
Features
• NEMA 4X / IP67 stainless steel construction
• Universal enclosure with tilt stand
• Large 1" (25 mm) six digit LED (green)
• 15 segment bargraph for under, accept, over
• Hard coated soft touch inductive keys
• RS232 with handshaking RTS/CTS
• Five setpoints and five digital inputs
• Setpoints are latched with selectable on and off times
• Function keys for setpoints, counting, lot entry
• 100 product memory (PLU)
• Accumulators with addition/subtraction
• Peak hold
• Time & date |
Specifications
Internal resolution: 1,000,000 counts
Display resolution:40,000 counts
Display division: 1,2,5,10,20,50
Indicator marks: Net, COZ, motion, setup, and 2 setup
Zero adjust range 50% full scale
A/D conversion rate: Selectable to 60 Hz
Non linearity: 0.01% full scale
Excitation voltage: 5 VCD, 230 mA (8 x 350 O load cells)
Power: 115/230 VAC, 50/60 Hz
Operation temperature: 14 to 104°F (-10 to 40°C)
Operating humdity: 85% non-condensing
Dimensions: (250 x 150 x 65 mm)
Est. ship weight: 10 lb (5 kg)
|
Part#
........... Description
103640.........

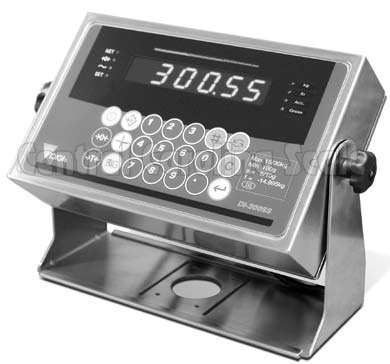

DI-300SS with RS232 & setpoints, 115 VAC/230 VAC.......
103641......... DI-300SS with Ethernet TCP/IP, 115 VAC/230 VAC........................
Options/Accessories
103642......... Ethernet RS232 board (TWB-10741)....................
103643......... Ethernet cable (TCW-0722) with external RJ 45 connector.............
74414........... Load cable (TCW-0730).......................
32375........... 14-pin load cell connector, amphenol....................................
103643......... Additional operation manual.......................................
